DTouch-1

DTouch-1

User interface with 3.5" up to 10.1" TFT

Beverage
Coffee
Pizza&Bakery
Professional food service

The DTouch-1 is based on a 32-bit ARM Cortex-M7 processor with real-time graphics acceleration running at up to 216 MHz, ideal for medium-sized displays. The processor core offers high performance, enabling smooth graphics and fast animations.
DTI’s support in product realisation is comprehensive: from graphics optimisation to firmware, software and hardware development to glass bonding with different solutions based on your requirements. Thanks to the IoT solutions developed by DTI, you can exploit the full potential offered by the DConnect modules and connect the DTouch-1 via WIFI, Bluetooth, mobile and Ethernet port.

Highlights

Digital I/O

LVDS-TTL 18 BIT

MICRO SD

Microcontroller STM32

RS485

SPI/I2C

USB2

WIFI

Features

Do you want to know more details about DTouch-1? Download
  • High performance processor, ARM®Cortex®- M7 32bit
  • Flash memory: up to 1Mbyte
  • SRAM: 320 KByte + 8MByte (ext)
  • Frequency: 216MHz
  • TFT sizes: up to 10,1”
  • Power supply: 5-12Vdc
  • Communication interfaces: Modbus RS485, TTL and customizable I/O, USB and micro SD
  • Connectivity: DTI Dconnect modules

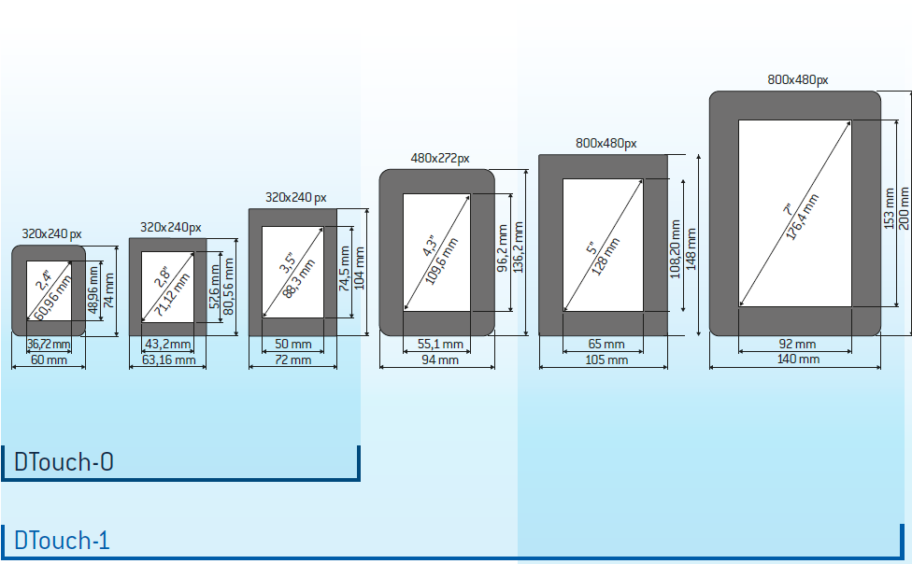

Technical images
