DCoffee-H

Electronic control for single group home coffee machine with coffee and steam boiler management

Coffee

Thanks to its experience in the electronics of the professional coffee machine world, DTI has created the DCoffee line to offer ready-to-use solutions that allow you to manage and set numerous coffee, water and steam brewing parameters.

DCoffee-H is the kit dedicated to single group coffee machines with coffee boiler management and services.

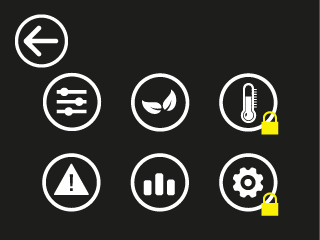

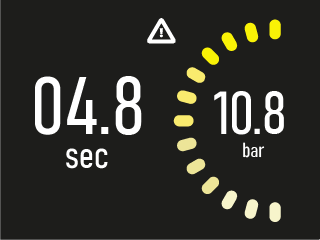

It is available in two possible configurations: power and display, or power with a 3-key capacitive keyboard. The recommended interface is DTouch-0, DTI’s solution with a 2.4” LCD.

The device manages brewing autonomously and automatically and the control unit detects temperature and pressure in the boiler, presence of water and loads inside the coffee machine. Small in size and easy to install, it can also be controlled remotely thanks to the IoT solutions developed by DTI.

Highlights

Advanced scheduling and calendar

Loading cycle with one level probe

Steam-water delivery control.

Temperature control with PID algorithm

Volumetric dispensing control

Web platform

Features

Do you want to know more details about DCoffee-H? Download
  • 100-240 Vac 50/60 Hz power supply
  • 2 relay output 10 A
  • 2 relay outputs 5 A
  • 2 SSR outputs
  • 1 LED output
  • 3 inputs for level measurement
  • 2 SSR outputs
  • 2 analogic inputs for NTC temperature sensor
  • Pressure transducer input
  • 1 RS485 port
  • 2 NTC sensor inputs
  • Buzzer
  • Customizable interface
Technical images
